Help using Tomey Software

   available on Crystal PM 2.8.10+

Install and configure the Tomey software.

Assigning a Field to the Machines DataFile.

1) Edit the Medical Records

2) Click on the field which will receive the input values

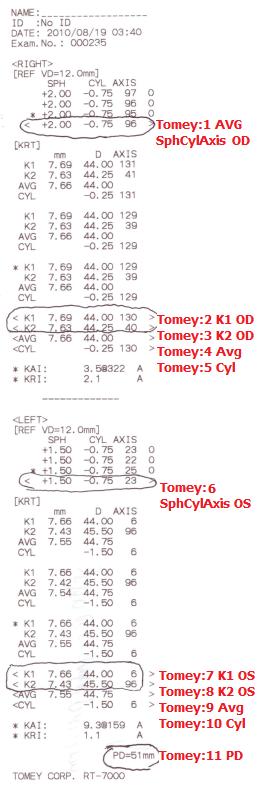

3) Change the description to Tomey:ID (ex -> [Tomey:1 for SphCylAxis OD)

	ID	Data	Example
	1	Sph Cyl Axis OD	+2.00-0.75x96
	2	Avg K1 OD	7.69 44.00 130
	3	Avg K2 OD	7.63 44.25 40
	4	Avg OD	7.66 44.00
	5	Avg Cyl OD	-0.25 130
	6	Sph Cyl Axis OS	+1.50-.0.75x23
	7	Avg K1 OS	7.66 44.00 66
	8	Avg K2 OS	7.43 45.50 96
	9	Avg OS	7.55 44.75
	10	Avg Cyl OS	-1.50 6
	11	PD	51
	Split of ID 1
	12	Sph OD	+2.00
	13	Cyl OD	-0.75
	14	Axis OD	96
	Split of ID 2
	15	Avg K1 mm	7.69
	16	Avg K1 diopter	44.00
	17	Avg K1	130
	Split of ID 3
	18	Avg K2 mm	7.63
	19	Avg K2 diopter	44.25
	20	Avg K2	40
	Spit of ID 4
	21	Avg OD mm	7.66
	22	Avg OD diopter	44.00
	Split of ID 5
	23	Avg Cyl OD	-0.25
	24	Avg OD diopter	130
	Split of ID 6
	25	Sph OS	+1.50
	26	Cyl OS	-0.75
	27	Axis OS	23
	Split of ID 7
	28	Avg K1 mm	7.66
	29	Avg K1 diopter	44.00
	30	Avg K1	66
	Split of ID 8
	31	Avg K2 mm	7.43
	32	Avg K2 diopter	45.50
	33	Avg K2	96
	Spit of ID 9
	34	Avg OD mm	7.55
	35	Avg OD diopter	44.75
	Split of ID 10
	36	Avg Cyl OD	-1.50
	37	Avg OD diopter	6
